前言
微软开发隧道(Microsoft Dev Tunnel)允许开发人员跨 Internet 安全地共享本地 Web 服务。 使你能够将本地开发环境与云服务连接,与同事共享正在进行的工作或帮助构建 Webhook。 开发隧道适用于临时测试和开发,不适用于生产工作负荷。
下载
Windows x64: https://aka.ms/TunnelsCliDownload/win-x64
macOS (arm64): https://aka.ms/TunnelsCliDownload/osx-arm64-zip
macOS (x64): https://aka.ms/TunnelsCliDownload/osx-x64-zip
Linux x64: https://aka.ms/TunnelsCliDownload/linux-x64
使用
登录账号
打开Windows Terminal,进入软件所在目录,执行命令:./devtunnel.exe user login -g -d
(如果电脑有浏览器优先调起浏览器实现登陆授权)出现如下提示
PS C:\Users\Administrator> ./devtunnel.exe user login -g -d
Browse to https://github.com/login/device and enter the code: 932E-F865
Logged in as malaohu using GitHub.

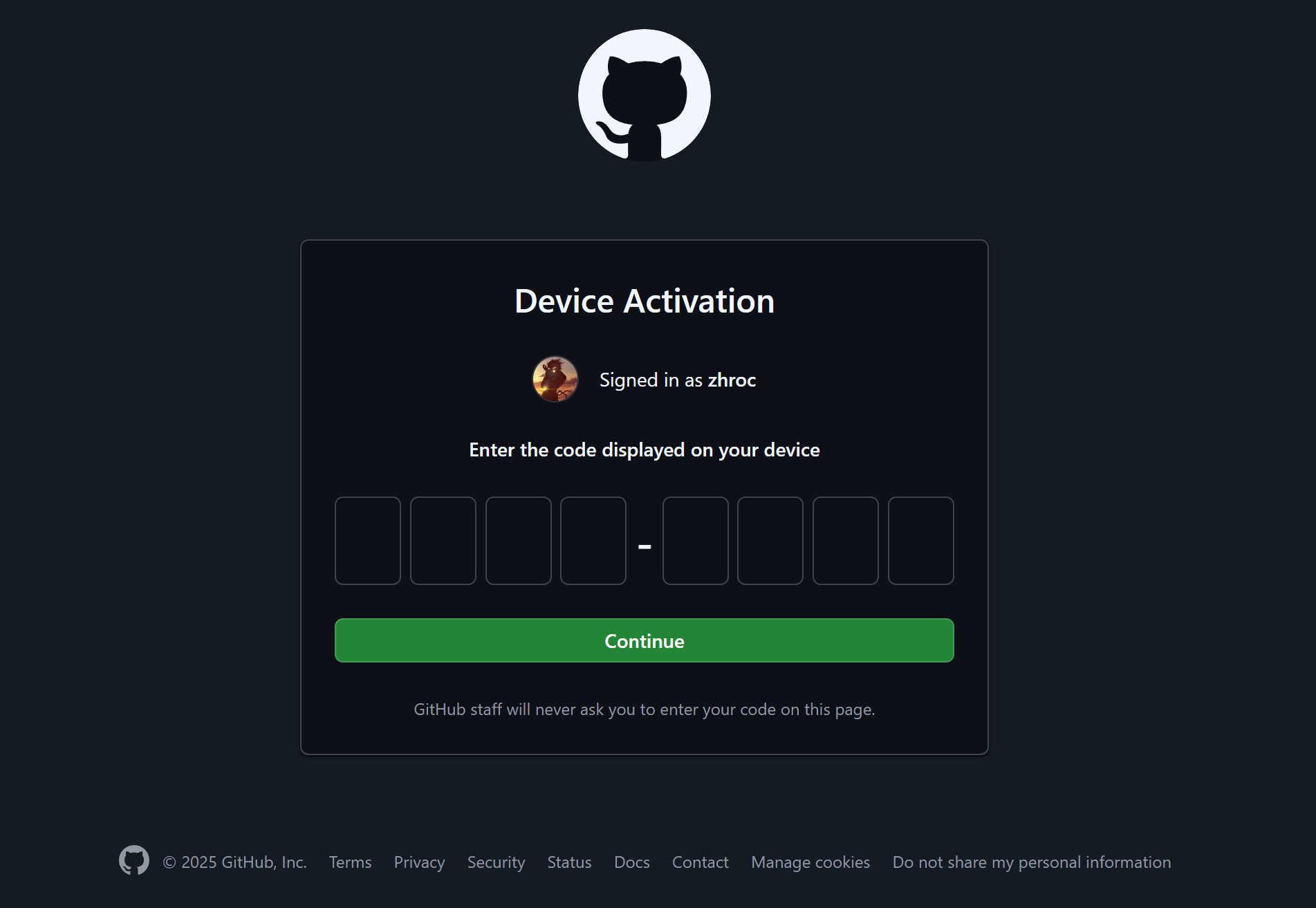

浏览器打开: https://github.com/login/device 填写上面显示的CODE:xxxx-xxxx
同意授权即可完成登录。
开启转发
输入转发端口命令:./devtunnel.exe host -p 1313
提示如下
PS C:\Users\Administrator> .\devtunnel.exe host -p 1313
Hosting port: 1313
Connect via browser: https://0k5vjwtb.asse.devtunnels.ms:1313, https://0k5vjwtb-1313.asse.devtunnels.ms
Inspect network activity: https://0k5vjwtb-1313-inspect.asse.devtunnels.ms
Ready to accept connections for tunnel: puzzled-lake-mfcnjm9.asse
使用浏览器访问以下任意一个网址即可
https://0k5vjwtb.asse.devtunnels.ms:1313
和 https://0k5vjwtb-1313.asse.devtunnels.ms
进入后需要使用上一步授权的GitHub账号登陆即可。
启动命令可选参数:
--allow-anonymous
PS C:\Users\Administrator> .\devtunnel.exe host -p 1313 --allow-anonymous
Hosting port: 1313
Connect via browser: https://0k5vjwtb.asse.devtunnels.ms:1313, https://0k5vjwtb-1313.asse.devtunnels.ms
Inspect network activity: https://0k5vjwtb-1313-inspect.asse.devtunnels.ms
Ready to accept connections for tunnel: puzzled-lake-mfcnjm9.asse
这种方法可以使任何获得链接的人无需授权直接访问,比较方便。
案例
使用Microsoft Dev Tunnel转发hugo server 进行预览
- 先将Tunnel和hugo都添加好环境变量
- 将下面代码中的
hugoProjectDir
修改为自己的hugo项目目录,保存文件后缀为ps1
- 使用Windows Powershell运行文件即可
# 设置控制台编码为UTF-8
[Console]::OutputEncoding = [System.Text.Encoding]::UTF8
$OutputEncoding = [System.Text.Encoding]::UTF8
chcp 65001 | Out-Null
<#
.SYNOPSIS
自动化Dev Tunnel设置和Hugo服务器启动(无需切换目录版)
.DESCRIPTION
此脚本:
1. 在端口1313上启动Microsoft Dev Tunnel
2. 提取隧道URL
3. 使用--source参数直接指定Hugo项目目录启动服务器
4. 错误时自动清理Dev Tunnel进程
.NOTES
文件名 : RunHugoWithDevTunnelNoCD.ps1
前提条件 : PowerShell 5.1或更高版本, Hugo, Microsoft Dev Tunnel CLI
#>
# 用户可自定义的变量
$hugoProjectDir = "" # 修改为您的Hugo项目目录
$devTunnelProcess = $null
try {
# 第一步:启动Dev Tunnel
Write-Host "`n=== 第一步:启动 Microsoft Dev Tunnel ===" -ForegroundColor Green
$devTunnelCommand = ".\devtunnel.exe host -p 1313 --allow-anonymous"
Write-Host "执行命令: $devTunnelCommand`n" -ForegroundColor Cyan
# 启动Dev Tunnel并捕获进程对象
$devTunnelProcess = Start-Process -FilePath "devtunnel.exe" -ArgumentList "host -p 1313 --allow-anonymous" -NoNewWindow -PassThru -RedirectStandardOutput "devtunnel_output.txt"
# 等待几秒让Dev Tunnel初始化
Start-Sleep -Seconds 5
# 读取Dev Tunnel输出
$devTunnelOutput = Get-Content "devtunnel_output.txt" -Raw
Write-Host $devTunnelOutput
# 从输出中提取URL
$tunnelUrl = $devTunnelOutput | Select-String -Pattern "Connect via browser: (https://[^\s,]+)" | ForEach-Object { $_.Matches.Groups[1].Value }
if (-not $tunnelUrl) {
Write-Host "无法从Dev Tunnel输出中提取URL" -ForegroundColor Red
throw "Dev Tunnel URL提取失败"
}
Write-Host "`n提取的隧道URL: $tunnelUrl`n" -ForegroundColor Yellow
# 第二步:启动Hugo服务器(不切换目录)
Write-Host "`n=== 第二步:启动 Hugo 服务器 ===" -ForegroundColor Green
# 检查Hugo项目目录是否存在
if (-not (Test-Path $hugoProjectDir)) {
Write-Host "错误:Hugo项目目录不存在: $hugoProjectDir" -ForegroundColor Red
throw "目录不存在"
}
# 构建Hugo命令(使用--source参数)
$hugoCommand = "hugo server --source `"$hugoProjectDir`" --baseURL=`"$tunnelUrl`" --bind=0.0.0.0 --port=1313"
Write-Host "执行命令: $hugoCommand`n" -ForegroundColor Cyan
# 启动Hugo服务器
try {
# 直接调用hugo命令,输出会显示在控制台
Invoke-Expression $hugoCommand
}
catch {
Write-Host "启动Hugo服务器时出错: $_" -ForegroundColor Red
throw $_
}
}
catch {
Write-Host "`n发生错误: $_" -ForegroundColor Red
Write-Host "正在清理Dev Tunnel进程..." -ForegroundColor Yellow
# 停止Dev Tunnel进程
if ($devTunnelProcess -and -not $devTunnelProcess.HasExited) {
Stop-Process -Id $devTunnelProcess.Id -Force -ErrorAction SilentlyContinue
Write-Host "已停止Dev Tunnel进程" -ForegroundColor Yellow
}
# 退出脚本并返回错误代码
exit 1
}
finally {
# 清理临时文件
if (Test-Path "devtunnel_output.txt") {
Remove-Item "devtunnel_output.txt" -ErrorAction SilentlyContinue
}
}
参考
更多高级使用方法请看这里。
